Our characteristics:
Intelligent Production Line
Automatic Warehousing System
Clear Visual Management
Standardized Management Certifications
Research and Development Innovation
Research and Development Capability
Application:
Electric vehicle
Golf cart
Electric motorcycle
Electric boat
Electric forklift
Telecommunication
Distributed Grid Energy Storage system
Mining equipment
Solar energy storage system
Marine
Backup power
Household energy storage system

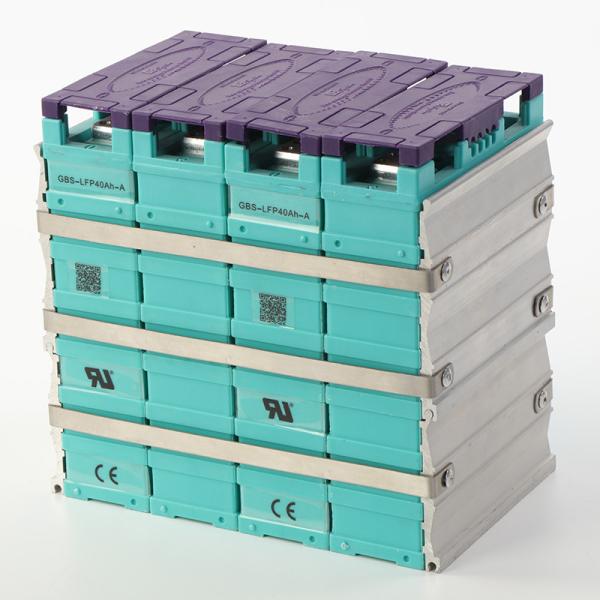

Specification
Good performance under high and low temperature;
Good safety performance;
Good cycle life time;
No pollution during manufacture.
| Item | Specification | Remark |
| Rated capacity | 40Ah | 0.2C rate discharge capacity |
| Minimum capacity | 40Ah |
| Internal impedance | ≤7.2mΩ | |
| Nominal voltage | 12V | |
| Cell weight | 6.2kg±100g | |
Standard discharge conditions | Constant current | 20A | |
| End-of-discharge voltage | 11.2V | |
| Standard charge method | Constant current | 10A | |
| Charge voltage | 14.2V | |
| Fast charge method | Constant current | 40A | |
| Charge voltage | 14.2V | |
| Max continuous discharge current | 120A | |
| Cycle life | 2000 cycles | 80% DOD |
| Operating temperature | Charging ambient temperature | 0~65°C | |
Discharging ambient temperature | -20~65°C | |
| Storage temperature | -20~65°C | |
| Appearance | Without break, distortion, contamination, leakage. | |
Basic Performance
(1) Output with high efficiency: Standard discharge current is
0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.
(2) Good performance under high temperature, it could work under
65°C temperature.The battery structure is safe and good.
(3) Good performance under low temperature.discharge capacity
decreases to over 78% under 0°C and discharge capacity decreases to
over 70% under -20°C.
(4) Good safety performance:When the pressure inside the battery is
too large, the one-way safety valve will release gas and heat to
make sure battery perform well. When the internal pressure reaches
a certain level, the valve will be open immediately which can
protect the battery from burning and explosion.
(5) Good cycle life time, the discharge capacity is still over 80%
after 3000 cycle times of single cell(80%DOD).
(6) It can fast charging. It could be charged to 80% within 20
minutes and charged full with 2-3h.
(7) Low cost.
(8) No pollution during manufacture and usage.
