    Energy Storage 3.2V 200Ah Prismatic Lithium Ion Battery Big Capacity Lifepo4 GBS-LFP200Ah-C

    Ask Lasest Price
    Brand Name : GBSystem
    Model Number : GBS-LFP200Ah-B
    Certification : CE, TUV, PONY, MA, ISO9001, ISO14001, OHASA18001
    Price : Negotiable
    Supply Ability : 1000000 Piece/Pieces per Year
    Delivery Time : 10 work days
    • Product Details
    • Company Profile

    Energy Storage 3.2V 200Ah Prismatic Lithium Ion Battery Big Capacity Lifepo4 GBS-LFP200Ah-C


    LiFePO4 Prismatic Lithium Ion Battery For Energy Storage 3.2V 200Ah Big capacity GBS-LFP200Ah-C


    Features


    • The battery can also accept a large charge current to regenerate energy through electric braking or speed reduction
    • Our battery is mainly composed of prismatic cell
    • Prismatic batteries are easy to connect, carry and substitute
    • Significantly, they are of safet​y .

    • We provide battery pack and BMS and charger for you.
    • You don’t need worry about the whole system, because we have engineers help you adjust BMS and charger, our customers only need to enjoy the convenience of use .

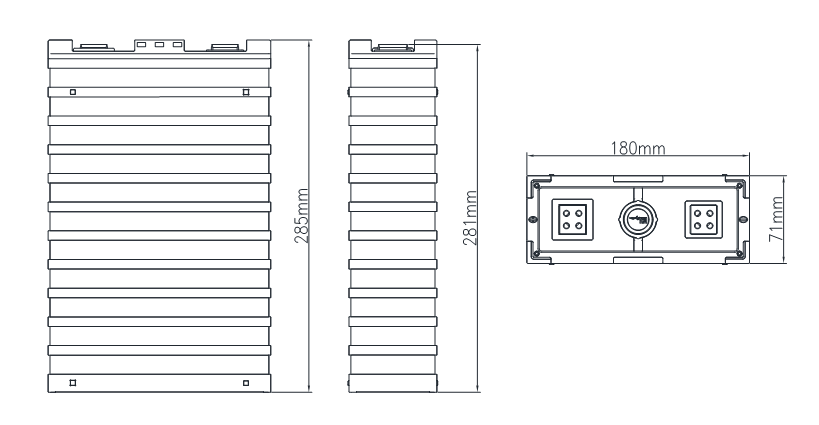

    Demension



    Specification


    Item

    Specification



    Model


    GBS-LFP200Ah-C

    Rated capacity


    200Ah

    Nominal voltage


    3.2V

    Internal impedance


    ≤0.35mΩ

    Standard charge


    0.25C

    Fast charge


    1C

    End of charge


    3.55V

    Standard discharge


    0.5C

    Max discharge


    1C

    Instantaneous discharge


    3C(10s)

    End of discharge


    2.9V

    Working temperature


    -20-65℃

    Cycle life


    3000 cycles(0.5C)

    Weight


    6.5kg

    Dimensions


    180×71×285mm

    Shell


    PP

    Certificates


    Energy Storage 3.2V 200Ah Prismatic Lithium Ion Battery Big Capacity Lifepo4 GBS-LFP200Ah-CEnergy Storage 3.2V 200Ah Prismatic Lithium Ion Battery Big Capacity Lifepo4 GBS-LFP200Ah-C


    Company Information


    Energy Storage 3.2V 200Ah Prismatic Lithium Ion Battery Big Capacity Lifepo4 GBS-LFP200Ah-C

    Why Choose Us


    (1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.


    (2) Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.


    (3) Good performance under low temperature.discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C.


    (4) Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.


    (5) Good cycle life time, the discharge capacity is still over 80% after 3000 cycle times of single cell(80%DOD).


    (6) It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.


    (7) Low cost.


    (8) No pollution during manufacture and usage.


    Exhibition


    Energy Storage 3.2V 200Ah Prismatic Lithium Ion Battery Big Capacity Lifepo4 GBS-LFP200Ah-C


    Production Line


    Energy Storage 3.2V 200Ah Prismatic Lithium Ion Battery Big Capacity Lifepo4 GBS-LFP200Ah-C


    1. Coating 5. Formation


    2. Cutting 6. Grading


    3. Stacking 7. Finishing product


    4. Sealing 8. Packing


    Attentions


    (1) Please check if spare parts are completed when open the package and read the operation manual carefully.


    (2) Do not make the battery Short Circuit,do not over charge and discharge.


    (3) Please charge the new battery to full capacity before discharge for the first use.


    (4) The battery pack is fixed with plate and strip before delivery, do not disassemble the plate and strip when using the battery.


    (5) Checking the voltage of battery, normally it is 3.2V-3.3V.


    (6) Fix BMS for battery pack and protect single cell to avoid over charge and over-discharge.


    (7) Rivet or screw is used for battery connector.


    (8) Please use copper part to connect battery packs and fix with hydraulic pressure plier. We could also provide the relevantconnection which fixed with screws.


    (9) The charger used should be approved by our company in order to match with our lithium batteries.


    (10) It will shorten battery cycle lifetime and damage battery due to overcharge and over-discharge if not do according to the above . It won’t be within our company warranty.


    Requirements For Safety Assurance


    For the sake of safety assurance, please discuss the equipment design, its system and protection circuit of Lithium-ion cell advance. And consult about the high rate current, rapid charge and special application in the same way.
