Lithium battery power store lifepo4 li-ion battery 12V pack
Specification
Good performance under high and low temperature;
Good safety performance;
Good cycle life time;
No pollution during manufacture.
Application:
Electric vehicle
Golf cart
Electric motorcycle
Electric boat
Electric forklift
Telecommunication
Distributed Grid Energy Storage system
Mining equipment
Solar energy storage system
Marine
Backup power
Household energy storage system

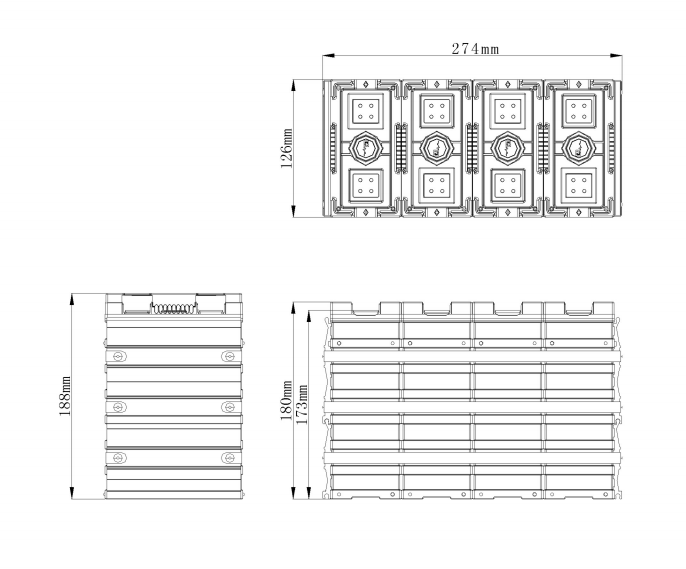

Dimension of 12V60Ah battery pack:
Specification of battery cell
| Item | Specification | Remark |
| 4.1 Rated capacity | 60Ah | 0.33C rate discharge capacity |
| 4.2 Minimum capacity | 60Ah |
| 4.3 Internal impedance | ≤0.7mΩ | |
| 4.4 Nominal voltage | 3.2V | |
| 4.5 Cell weight | 2.0±0.1KG | |
| 4.6 Standard discharge conditions | Constant current | 30A | |
| End-of-charge voltage | 2.8V | |
4.7 Standard charge method | Constant current | 15A | |
| Charge voltage | 3.65V | |
| 4.8 Fast charge method | Constant current | 60A | |
| Charge voltage | 3.65V | |
| 4.9 Max continuous discharge current | 180A | |
| 4.10 Pulse discharge current at 10 sec | 600A | |
| 4.11 Self-discharge | ≤1% per month | |
| 4.12 Cycle life(0.5C) | 3000 cycles | 80% DOD(25±2℃) |
| 4.13 Operating temperature | Charging ambient temperature | 0~65℃ | |
Discharging ambient temperature | -20~65℃ | |
| Storage temperature | -20~65℃ | |
| 4.14 Appearance | Without break, distortion, contamination, leakage. | |
Our characteristics:
Intelligent Production Line
Automatic Warehousing System
Clear Visual Management
Standardized Management Certifications
Research and Development Innovation
Research and Development Capability
Basic Performance
(1) Output with high efficiency: Standard discharge current is
0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.
(2) Good performance under high temperature, it could work under
65°C temperature.The battery structure is safe and good.
(3) Good performance under low temperature.discharge capacity
decreases to over 90% under 0°C and discharge capacity decreases to
over 70% under -20°C.
(4) Good safety performance:When the pressure inside the battery is
too large, the one-way safety valve will release gas and heat to
make sure battery perform well. When the internal pressure reaches
a certain level, the valve will be open immediately which can
protect the battery from burning and explosion.
(5) Good cycle life time, the discharge capacity is still over 80%
after 3000 cycle times of single cell(80%DOD).
(6) It can fast charging. It could be charged to 80% within 0.5h
and charged full with 2-3h.
(7) No pollution during manufacture and usage.
Matters Needing Attention
(1) Please check if spare parts are completed when open the package
and read the operation manual carefully.
(2) Do not make the battery Short Circuit,do not over charge and
discharge.
(3) Please charge the new battery to full capacity before discharge
for the first use.
(4) The battery pack is fixed with plate and strip before delivery,
do not disassemble the plate and strip when using the battery.
(5) Checking the voltage of battery, normally it is 3.2V-3.3V.
(6) Fix BMS for battery pack and protect single cell to avoid over
charge and over-discharge.
(7) Rivet or screw is used for battery connector.
(8) Please use copper part to connect battery packs and fix with
hydraulic pressure plier. We could also provide the relevant
connection which fixed with screws.
(9) The charger used should be approved by our company in order to
match with our lithium batteries.
(10) It will shorten battery cycle lifetime and damage battery due
to overcharge and over-discharge if not do according to the above.
It won’t be within our company warranty.
Requirement for safety assurance
For the sake of safety assurance, please discuss the equipment
design, its system and protection circuit of Lithium-ion cell
advance. And consult about the high rate current, rapid charge and
special application in the same way.
