Specifications
Good performance under high and low temperature;
Good safety performance;
Good cycle life time;
No pollution during manufacture.
Applications:
Electric vehicle
Golf cart
Electric motorcycle
Electric boat
Electric forklift
Telecommunication
Distributed Grid Energy Storage system
Mining equipment
Solar energy storage system
Marine
Backup power
Household energy storage system

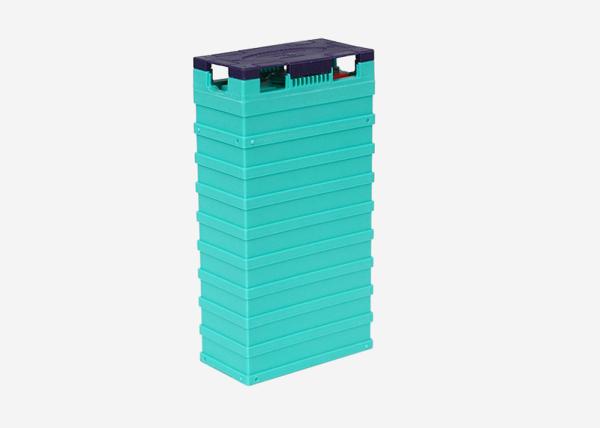

Cell dimension
Specification of battery cell
GBS-LFP100Ah-A
| Item | Specification | Remark |
| 4.1 Rated capacity | 100Ah | 0.33C rate discharge capacity |
| 4.2 Minimum capacity | 100Ah |
| 4.3 Internal impedance | ≤0.6mΩ | |
| 4.4 Nominal voltage | 3.2V | |
| 4.5 Cell weight | 2.8±0.1KG | |
| 4.6 Standard discharge conditions | Constant current | 50A | |
| End-of-charge voltage | 2.8V | |
4.7 Standard charge method | Constant current | 25A | |
| Charge voltage | 3.65V | |
| 4.8 Fast charge method | Constant current | 100A | |
| Charge voltage | 3.65V | |
| 4.9 Max continuous discharge current | 300A | |
| 4.10 Pulse discharge current at 10 sec | 1000A | |
| 4.11 Self-discharge | ≤1% per month | |
| 4.12 Cycle life(0.5C) | 3000 cycles | 80% DOD(25±2℃) |
| 4.13 Operating temperature | Charging ambient temperature | 0~65℃ | |
Discharging ambient temperature | -20~65℃ | |
| Storage temperature | -20~65℃ | |
| 4.14 Appearance | Without break, distortion, contamination, leakage. | |
Sales Team
Packaging and delivery
Basic Performance
(1) Output with high efficiency: Standard discharge current is
0.3C-0.8C, instant impulse discharge current
is 10C for 10 seconds.
(2) Good performance under high temperature, it could work under 65°C temperature.The battery structure
is safe and good.
(3) Good performance under low temperature.discharge capacity decreases to over 90% under 0°C and discharge capacity decreases to over 70% under -20°C.
(4) Good safety performance:When the pressure inside the battery is too large, the one-way
safety valve
will release gas and heat to make sure battery perform well. When
the internal pressure reaches a certain level, the valve will be
open immediately which can protect the battery from burning and
explosion.
(5) Good cycle life time, the discharge capacity is still over 80%
after 3000 cycle times of single cell(80%DOD).
(6) It can fast charging. It could be charged to 80% within 0.5h
and charged full with 2-3h.
(7) No pollution during manufacture and usage.
Requirement for safety assurance
For the sake of safety assurance, please discuss the equipment
design, its system and protection circuit
of Lithium-ion cell advance. And consult about the high rate
current, rapid charge and special application
in the same way.
